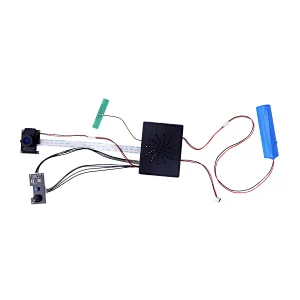

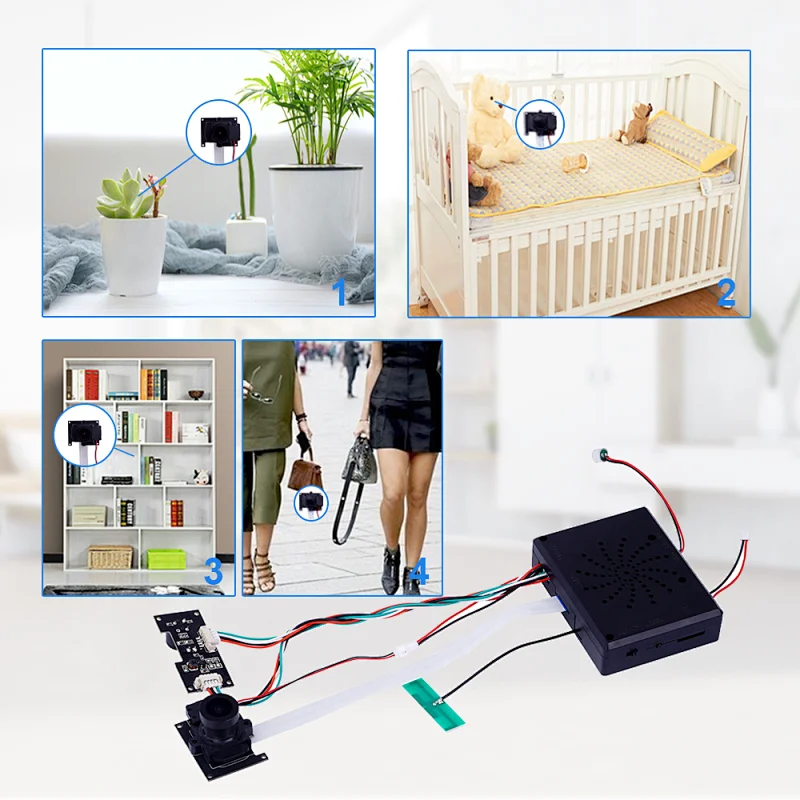

To DIY a cost-effective and unique style wifi ip DIY module camera of your own business, it could a big advancement and advantage on sales. You can choose Big Lens or Small Lens with same video quality for DIY by yourself. Wi-Fi camera module is mini size,portable and easy fitting to DIY a own exclusive and local style nanny cameras.

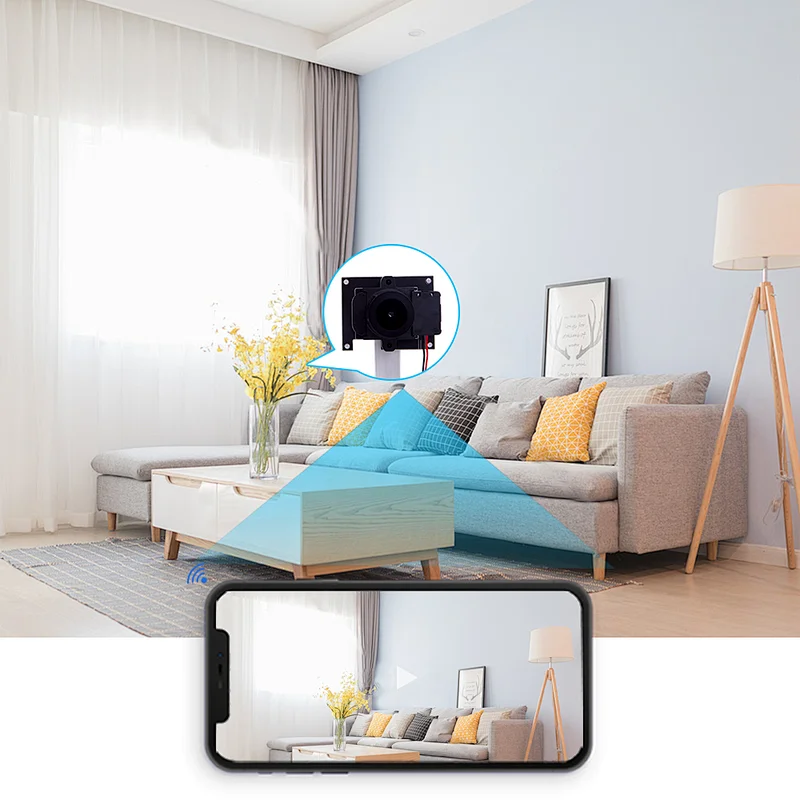

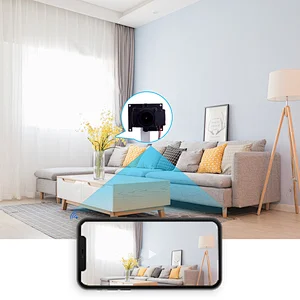

Real-time video streaming and recording on smartphone ,with high resolution 2.0 mega pixel lens, to get the real and vivid video remotely.

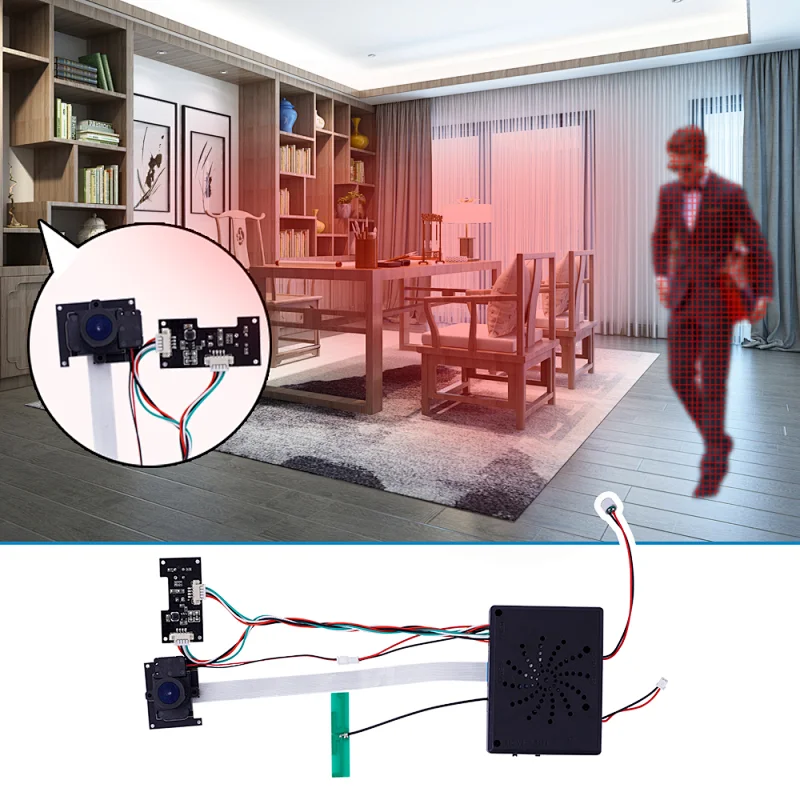

When PIR human motion detected, notification with the picture will pushed to phone. Meanwhile, a video clip will be recorded to SD card and can be read on App.

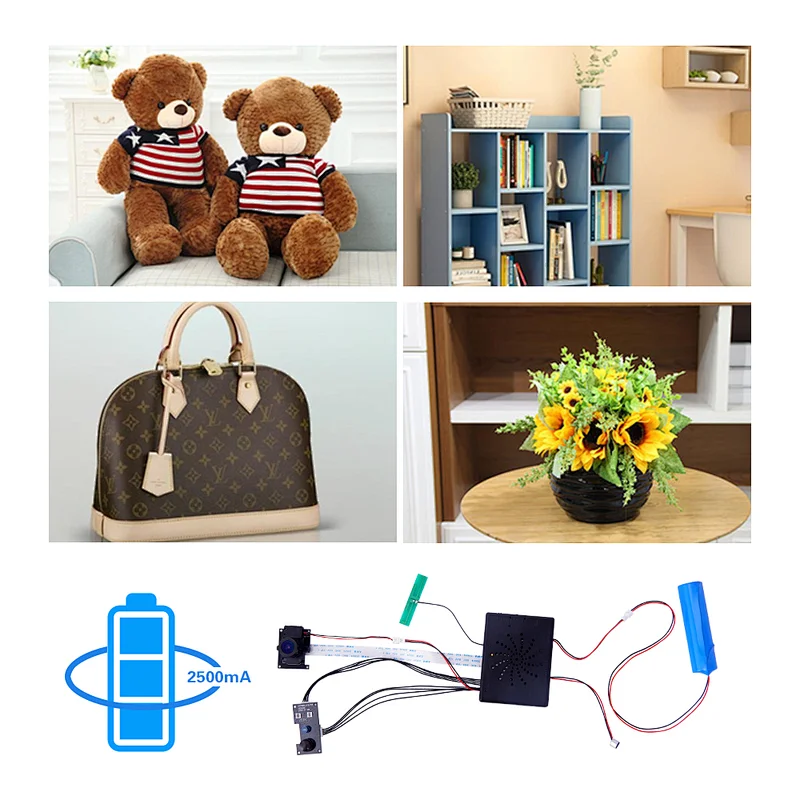

As well, 2500mA/5000mA/7500mA battery selectable for long time standby.

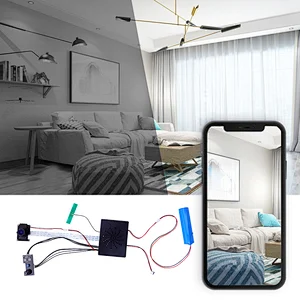

Night vision Wi-Fi DIY camera module
2.0 Mega HD 1080P High definition
Wi-Fi P2P Live streaming Video
App remotely taking video and photo
PIR Human and Motion detection video recording and alarm
5M invisible far night vision
2500mAh battery life time around half a year
5000mAh/7500mAh battery is selectable

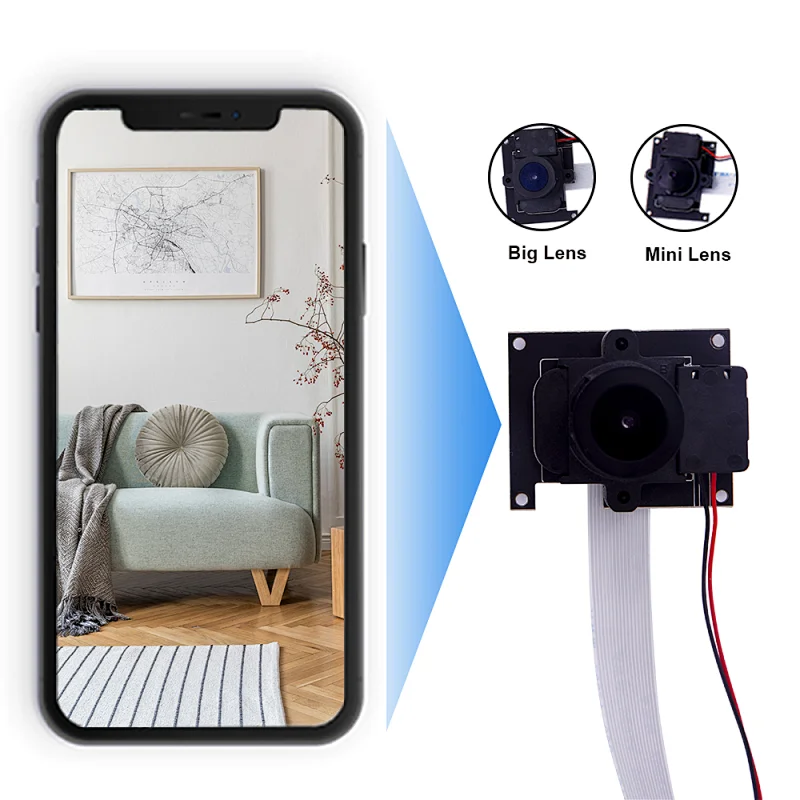

Big Lens/Mini Lens is selectable(Same video quality)
Around 5 meters invisible night vision
WiFi Worldwide Live Streaming video
Motion detection & Push alarm msgs
Two way speaking
Loop recording
Microphone Support
2.0 mega pixel CMOS lens
Video resolution: 1920*1080
Photo resolution: 1920*1080
Frame: 15FPS
H.264 compressed format
Lens angle: 145 degree
Support Micro SD card: Max 64GB
PIR alarm pictures in server: 15days
Standby power consumption: 500μA
Power consumption: 400mAh
Power consumption with night vision: 640mAh
Normal working time
Standby time: around half a year
Charging time:6 hours
Mobile phone operation system: Android/iOS
Packing list:
1 x DIY Module Camera
1 x USB cable
1 x User manual
1 x Micro SD card reader
1 x 2500mAh Battery
5000mAh/7500mAh battery for selectable
Product size:6.3*4.8*1.6(CM)
Color box Size:10.5*7.5*8.5(CM)
Weight of a Unit :
60pcs each Carton
Carton size: 42*39*34(CM)
NO ADAPTER, but require 5V 2A power.
Big Lens:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We will send your order in one week by DHL/UPS/FEDEX/TNT.
3. We offer OEM services,print your own logo on product,customize the retail box packing and other things.
Q: Do you send two lens with it?
A: No,you can choose big lens/small lens,we will send the one you choose.
Q: What is the difference between two lens?
A: The big lens is visible,small lens is hidden.Big lens view is 145 degree,small lens view is 90 degree.
Q: How long does the battery last?
A: We sent default 2500mah battery which can standby for half a year.5000mah/7500 battery is selectable.
Q: Does it can record without wifi?
A: Yes.
